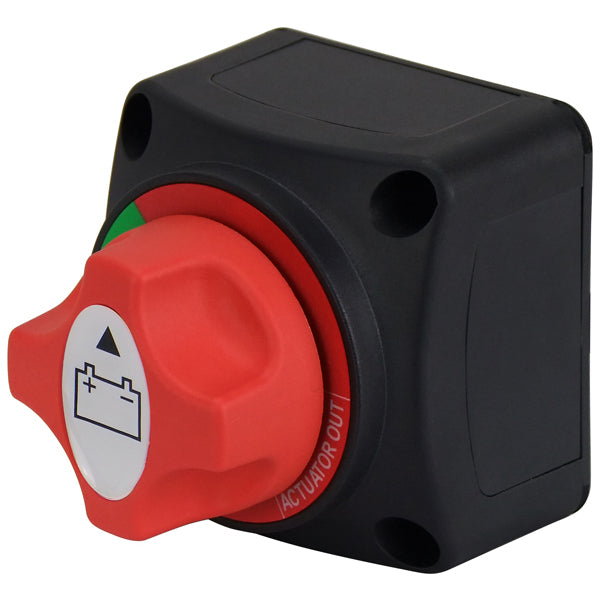

Battery Switch Surface Mount Battery Isolator Switch - 2 Position

FREE POST AUSTRALIA WIDE!

Battery Switch
Compact battery isolator switch 2 position for single battery.
• Robust weather resistant battery switch, features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications.
• Suitable for applications up to 50VDC.
1000A @ 12V for 30 seconds.
500A @ 24V for 30 seconds.
250A @ 50V for 30 seconds.
300A @ 12V continuous load maximum.
150A @ 24V continuous load maximum.
75A @ 50V continuous load maximum.
• Mounting screws supplied.
• 2 position features - On / Off.
• 1 year warranty.

Cranking Rating: 1000Amps

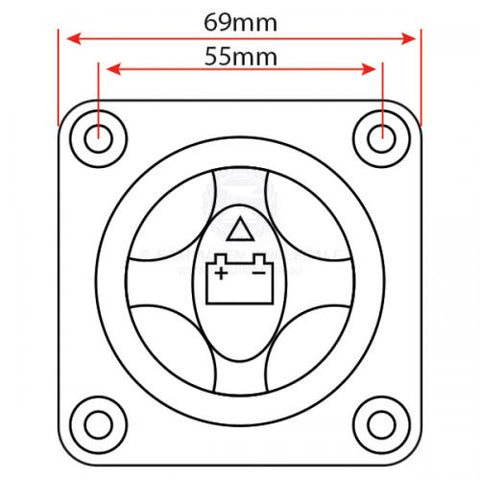

Dimensions (L x W x D) 69mm x 69mm x 74mm

Terminal Stud Size: M10 x 19mm

Mounting Holes: Dia. 5mm r/h

Function: 2

Volts: 12/24V

Max. Continuous Load: 300Amps

Note: Depress knob Before turning from "Actuator Out" to "Off" position.

Part No: 530781
