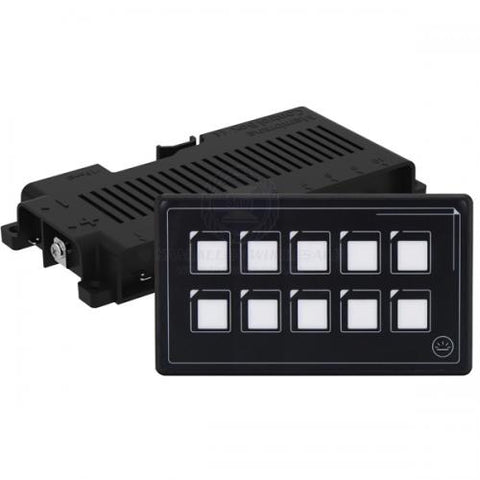

Boat 10 Digital Membrane Switch Panel Touch Control Panel On/Off Indicator

Boat 10 Digital Membrane Switch Panel Touch Control Panel On/Off Indicator

$209.00 $253.20

FREE POST AUSTRALIA WIDE!

SUPER SPECIAL- IN STOCK NOW!

  • Digital Membrane Switch Panel
  • New Release Digital Membrane Switch Panel, Ultra Slim Line.
  •  Easy Install, Almost No Mounting Depth Required (Instructions Included).
  • Ultra Compact Panel Size W130mm x H75mm, Self Adhesive Panel Back, 15mm Diameter Cut-Out.
  • Waterproof IP67 Rated (Panel Only).
  • On Indicating LED And 10A PPTC Protection.
  • Push Button Back Light Switch.
  • 0.250 Quick Terminals Male.
  • Remotely Installed Control Box.
  • Programmable Momentary Button On All Buttons.

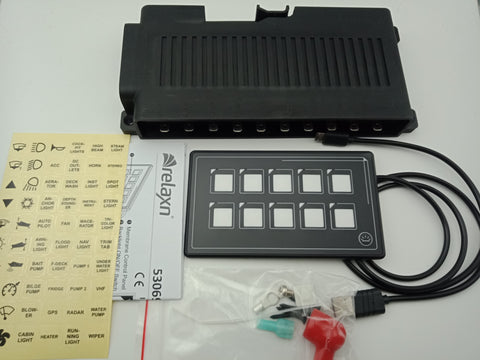

  • Includes 60 Piece Assorted Label Set.

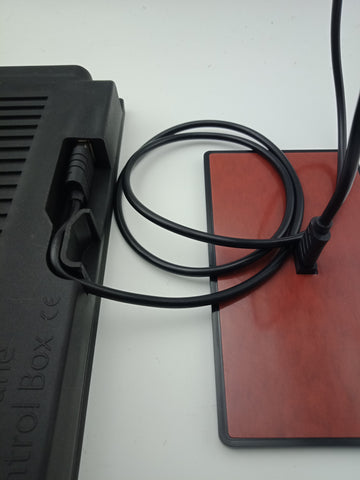

  • Mounting Hardware & 1 Metre Micro-USB Cable Included.
  • 12 Or 24 Volts.
  • Touch Panel 130mm Wide x 75mm Wide.
  • Switch Rating: 10 Amp Per Branch.
  • Panel Rating: 60 Amps.
  • 10 Switch.
  • Control Box- 214mm Long x 95mm Wide x 29mm High.
  • Dash Cut-Out Required 15mm Diameter.
  • Power Terminals- M5 Stud Size.
  • Red On/Off Indicator, White Back Light (Has A Back Light On/Off Switch In Bottom Corner Of Panel).
  • Made In Taiwan.
  • Part No: 530692
