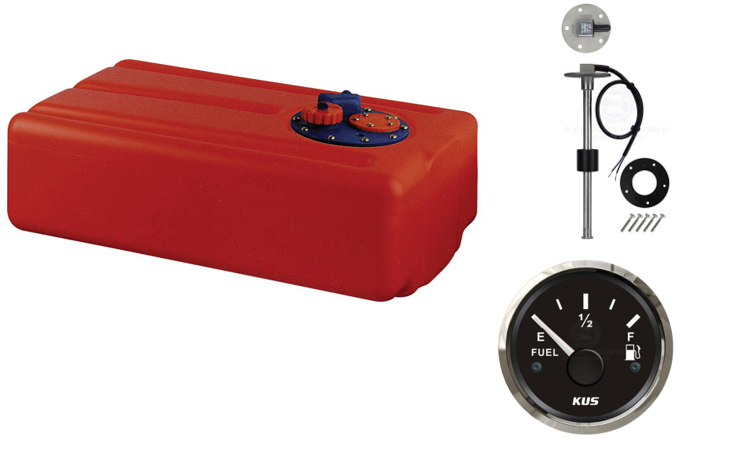

Boat 41Ltr Fuel Tank 650mm x 390mm x 200mm Can-SB® With Sender & Gauge

Boat 41Ltr Fuel Tank 650mm x 390mm x 200mm Can-SB® With Sender & Gauge

$515.00 $557.30

Boat 41Ltr Fuel Tank- Including Electric Fuel Gauge & Sender

These Boat 41Ltr Fuel Tank are made with high density polyethylene plastic, suitable for petrol or distillate.
• Features include a removable inspection port hole, vented cap, stepped 16mm/20mm tail for external breather, 10mm tail for fuel hose, blanked 1/4" BSP terminal for a second fuel pickup or diesel return and provision for a 5 hole fuel sender or gauge.

Made in Italy

Specifications:

Part No. 37342

Length: 650mm

Width: 390mm

Weight: 4.5kg

Depth: 200mm

Capacity: 41Ltr

Note: Tank dimensions exclude fittings.

Also Included:

40200 KUS Fuel Sender 200mm - Screws Directly Into This Tank.

Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration.
• SAE Standard: 5 mounting holes.
• 316G stainless steel main body.
• Rubber gasket provides a liquid tight seal.
• IP67 rated.
• Operating temperature: -40 Degree Celsius - +85 Degree Celsius.
• 300mm tinned wire with a PVC material cover.
• Stainless steel screws included.
• 33mm float cut out.

Length 200mm

Mount Style 5 Hole

Mount Flange Dia. 69mm

OHMS 240-33

Note Special sizes available to order. Length is measured from underside of the flange to the base of the shaft.



43712 KUS Gauge Fuel 52mm Black SS 240-33 Ohm 12/24v

 Double layer reinforced anti-fogging lens.
• Plug 'n Play multi-plug socket lead supplied (100mm).
• Waterproof rating of IP67.
• CE Certified.

Back Light Red or Yellow Display

Range Empty - Full

OHMS240-33

Cut Out ia. 52mm

Volts12V/24V

Bezel Colour Stainless Steel

Display Colour Black

Instructions available

fuel_water_gauge_manual.pdf (samallen.com.au)





Free Freight on this product only applies for the East Coast of Australia & Adelaide Region. Anyone outside these areas please contact us for a freight quote. NO PO Boxes please on this item.
