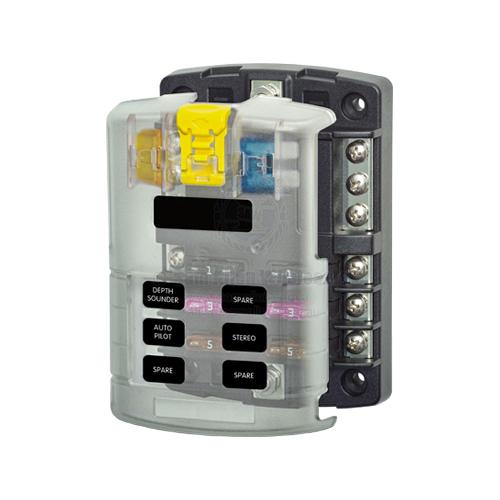

Fuse Block 6 Gang Blade with neg buss bar & screw terminals Relaxn

Description

FREE POST AUSTRALIA WIDE!

• Positive distribution bus with circuit protection, M5 common stud and M4 screw terminals.
• Negative bus bar with M5 common stud and M4 screw terminals.
• Cover for insulation, incorporating an easy to open push button latch providing access to fuses and storage for two spare fuses.
• Nickel-plated copper buses and fuse clips.
• Accepts ring or fork type terminals.
• Accepts standard size blade fuses.
• Built-in red LED illuminates to indicate a blown fuse for quick fault troubleshooting.
• 80 piece sticker set and fasteners included.

Type: 6 Circuit
Max Current: 30A max. per branch 100A Total
Max Volts: 32V
Dimensions (W x H x D): 84mm x 124mm x 37.5mm
Note: Fuses not included

Part No: 302246
