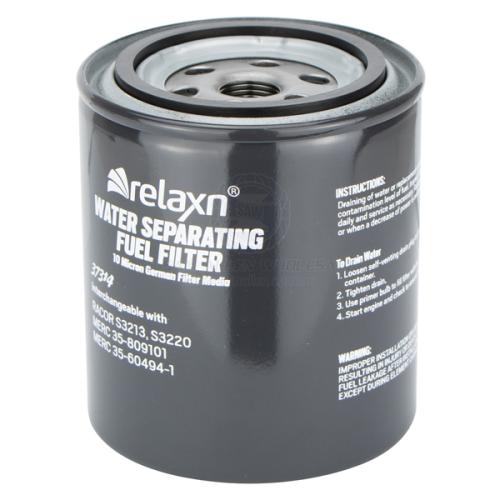

MARINE BOAT UNIVERSAL MERCURY WATER SEPARATING FUEL  filter-Mercury Outboard

MARINE BOAT UNIVERSAL MERCURY WATER SEPARATING FUEL filter-Mercury Outboard

$25.00 $32.90


  • Marine/Outboard Fuel Filters
  • Top Quality German Filter Media
  • VITON SEALS 10 MICRON GERMAN FILTER MEDIA
  • Thread Type / Size: Mercury Thread 11/16" 16 T.P.I

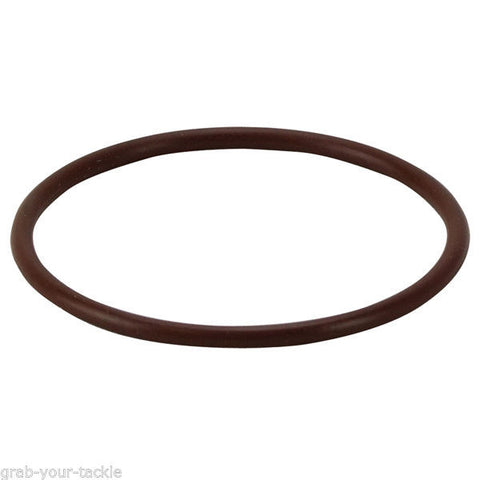

  • Included: Viton o-ring
  • Note: Interchangeable with:
  • RACOR S3213, S3220
  • MERC 35-809101

INSTRUCTIONS
:
Draining of water or replacement of element is determined by contamination level of fuel. Inspect the collection bowl for water daily and service as necessary. Replace element at least once a year or when a decrease of power is noticed.
To Drain Water
1. Loosen self-venting drain plug to drain water from bowl into a container.
2. Tighten drain.
3. Use primer bulb to fill filter with fuel.
4. Start engine and check ensure there are no leaks.

WARNING:

Improper installation or use may cause fire/explosion resulting in bodily injury or death. Run engine and check for fuel leakage after installation. Do not remove bowl except during element change.

To Replace Element
1. Loosen self-venting drain plug and drain the element into a container.
2. Remove filter element from mounting bracket with bowl connected.
3. Remove bowl from filter element and clean o-ring gland on bowl. BOWL IS REUSABLE * DO NOT DISCARD.
4. Lubricate o-ring with oil or grease and install on bowl.
5. Install bowl onto new element, tighten by hand.
6. Lubricate filter top seal with oil or grease.
7. Fill filter/bowl assemble with clean fuel and attach onto mounting bracket, tighten by hand.
8. Start engine and check to ensure there are no leaks.
Thread Type / Size: Mercury Thread 11/16" 16 T.P.I
Included: Viton o-ring
Note: Interchangeable with:
  • RACOR S3213, S3220
  • MERC 35-809101
