OB FUEL FILTER ELEMENT WATER SEPARATOR SUITS BowL filter-Mercury Outboard

OB FUEL FILTER ELEMENT WATER SEPARATOR SUITS BowL filter-Mercury Outboard

$45.50 $52.10

Marine/Outboard Fuel Filters
Top Quality German Filter Media
Viton Seals 10 Micron German Filter Media

Instructions:
Draining of water or replacement of element is determined by contamination level of fuel. Inspect the collection bowl for water daily and service as necessary. Replace element at least once a year or when a decrease of power is noticed.

To Drain Water:

  • Loosen self-venting drain plug to drain water from bowl into a container.
  • Tighten drain.
  • Use primer bulb to fill filter with fuel.
  • Start engine and check ensure there are no leaks.


Warning:
Improper Installation Or Use May Cause Fire/Explosion Resulting In Bodily Injury Or Death. Run Engine And Check For Fuel Leakage After Installation. Do Not Remove Bowl Except During Element Change.

To Replace Element:

  • Loosen self-venting drain plug and drain the element into a container.
  • Remove filter element from mounting bracket with bowl connected.
  • Remove bowl from filter element and clean o-ring gland on bowl. Bowl is reusable * do not discard.
  • Lubricate o-ring with oil or grease and install on bowl.
  • Install bowl onto new element, tighten by hand.
  • Lubricate filter top seal with oil or grease.
  • Fill filter/bowl assemble with clean fuel and attach onto mounting bracket, tighten by hand.
  • Start engine and check to ensure there are no leaks.

Thread Type / Size: Mercury Thread 11/16" 16 T.P.I

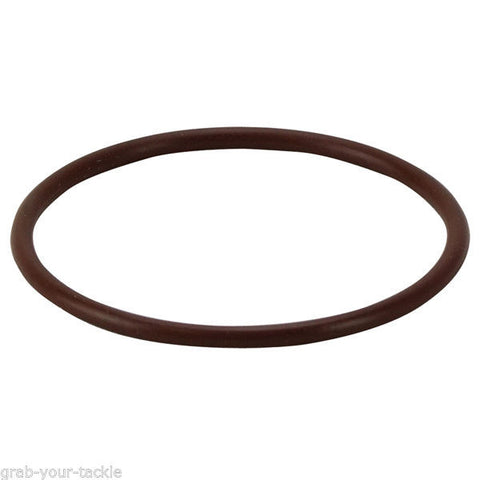

Included: Viton o-ring
Note: Interchangeable with:
RACOR S3213, S3220
MERC 35-809101
